INOX 220 at a Glance
Specialized pipe cutter for precise stainless steel pipe cutting.

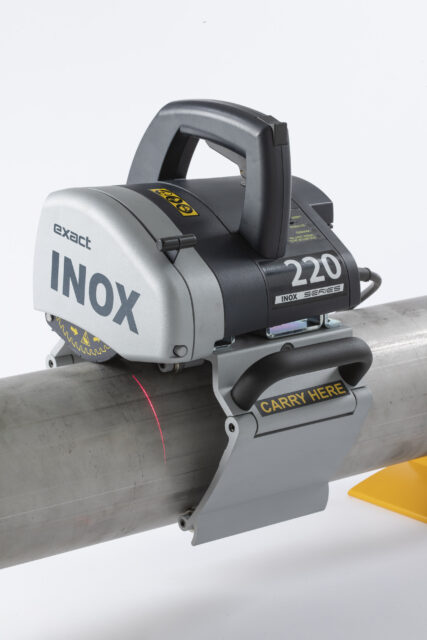

INOX 220 is a portable and handy tool designed for stainless steel and acid-resistant pipe cutting.
Setup is fast and simple. Its clean, user-friendly design allows quick mounting on pipes from 20 mm to 220 mm (0.8″–8.7″) with a maximum wall thickness of 12.5 mm (0.5″).
The INOX 220 delivers fast, precise pipe cuts. A laser pointer ensures accurate cutting points, making every cut easy and reliable.
With Exact machines, you can achieve up to 10 times faster cuts compared to traditional methods. The INOX 220 takes this further, enabling up to 10 times more cuts on stainless steel compared to previous solutions.

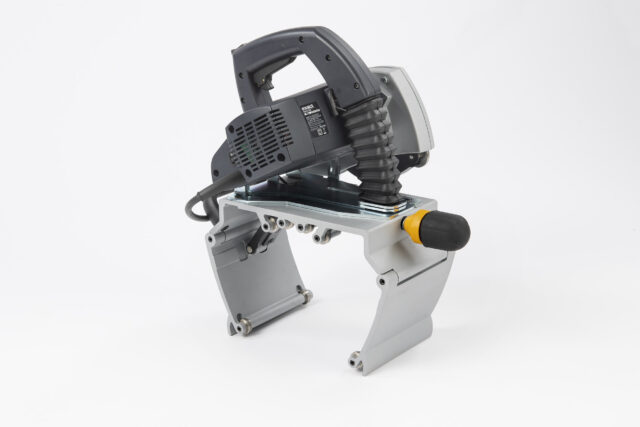

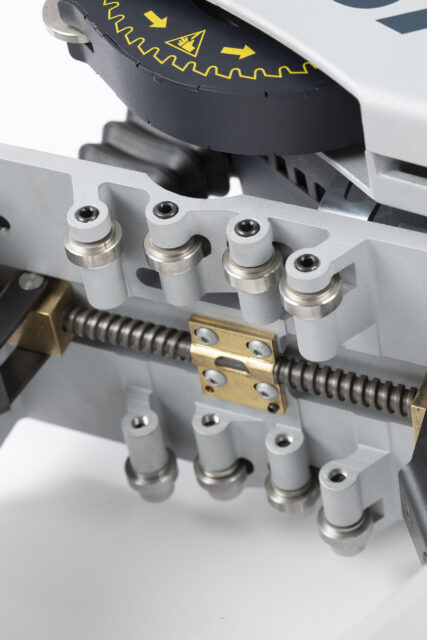

To prevent scratching and contamination, the machine’s gripper has been redesigned and equipped with stainless steel wheels that protect the most vulnerable pipe surfaces.
Supplied with the INOX 140 blade, the INOX 220 delivers outstanding performance and extended blade life.
Download product sheetThe Benefits
- User-friendly, extremely easy, safe, and convenient to use.
- Efficient, extremely fast cuts.
- No contamination on stainless steel or acid-proof steel.
- Maximum wall thickness: 12.5 mm.

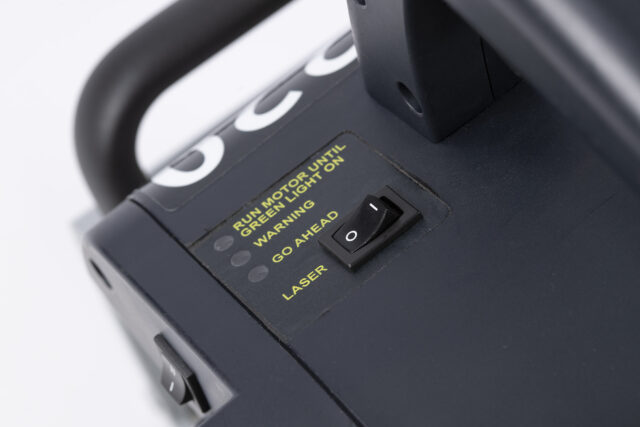

- Improved precision with traffic light system.
- Laser indicator for cutting point accuracy.
- Designed in Finland, made in the EU.
Standard package includes
- Shoulder bag
- PipeCut INOX 220 pipe saw with INOX 140 blade pre-installed
- Pipe cutting supports, 4 pcs
- Operating instructions
- Allen key 5 mm (attached to the saw)
Technical Specifications
-
Product number
7010421
-
Pipe material
Stainless / Inox
-
Pipe OD
20mm – 220mm
-
Max. wall thickness
12.5 mm
-
Power
1600 W
-
No-Load speed
I (low) = 1900/min, II (high) = 2885 /min
-
Blade diameter
140 mm
-
Mounting bore
62 mm
-
Weight
11,5 kg
-
Electronical unit
Blade speed preselection, overload protection, soft start, torque control
-
Loading capacity of supports
190 kg (4 supports)
