INOX 360 at a Glance
Specialized pipe cutter for precise stainless-steel pipe cutting.
INOX 360 is a portable and handy tool designed for stainless steel and acid-resistant pipe cutting.
Setup is fast and simple. Its clean, user-friendly design allows quick mounting on pipes from 75 mm to 360 mm (3″–14″) with a maximum wall thickness of 15 mm (0.6″).
The INOX 360 delivers fast, precise pipe cuts. A laser pointer ensures accurate cutting points, making every cut easy and reliable.
With Exact machines, you can achieve up to 10 times faster cuts compared to traditional methods. The INOX 360 takes this further, enabling up to 10 times more cuts on stainless steel compared to previous solutions.

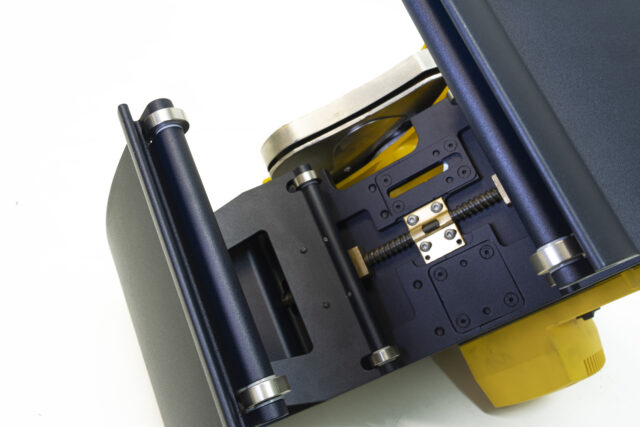

To prevent scratching and contamination, the machine’s gripper has been redesigned and equipped with stainless steel wheels that protect the most vulnerable pipe surfaces.
Supplied with the INOX 140 blade, the INOX 360 delivers outstanding performance and extended blade life.
Download product sheetThe Benefits
- User-friendly, extremely easy, safe, and convenient to use.
- Efficient, extremely fast cuts.
- No contamination on stainless steel or acid-proof steel.
- Maximum wall thickness: 15 mm.
- Improved precision with traffic light system.
- Laser indicator for cutting point accuracy.
- Designed in Finland, made in the EU.
Standard package includes
- Shoulder bag
- PipeCut 360 INOX with INOX 140 blade pre-installed
- Pipe cutting supports: 1 double, 2 single
- Operating manual
- Allen keys 2 mm and 5 mm (attached to the saw)
Technical Specifications
-
Product number
7020365
-
Pipe material
Stainless / Inox
-
Pipe OD
75mm – 360mm
-
Max. wall thickness
15 mm (stainless)
-
Power
2500 W
-
No-Load speed
I (low) = 1900/min, II (high) = 2885 /min
-
Blade diameter
140 mm
-
Mounting bore
62mm
-
Weight
17,5 kg
-
Electronical unit
Blade speed preselection, overload protection, soft start, torque control
-
Loading capacity of supports
465 kg (3 supports)
