Exact PipeCut 220 Pro Series

Heavy-duty pipe saw for small and medium diameter pipes

What happens when you add a piece of future to our old PipeCut 220E model? The machine becomes PipeCut 220 Pro Series.

This machine is the choice for you, when you need to cut any small to medium sized pipes of toughest and thickest pipe materials you face.

Thanks to this pipe saw’s advanced features, you can cut steel pipes with wall thickness up to 16 mm (0.62″) with the EU-model.

With US-model the max. wall thickness capacity for steel pipes is 12 mm (0.5″).

The max. wall thickness cutting capacity for plastic pipes is 35 mm (1.37″) for both EU-model and US-model.

The cutting capacity for pipe outside diameter is 20 mm – 220 mm (0.8″ – 8.7″).

The resulted combination of two: proven Pro Series ™ technology and our flagship product, classic PipeCut 220E pipe saw.

This new machine is equipped with all the powerful features of our advanced Pro Series machines:

  • User friendliness, extremely easy and convenient to use
  • Efficiency, extremely fast cuts
  • Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds
  • Laser indicator for cutting point precision
  • Updated adjustment mechanism
  • Easy to carry, easy to move. The machine weighs only 11,5 kg (25 lbs)

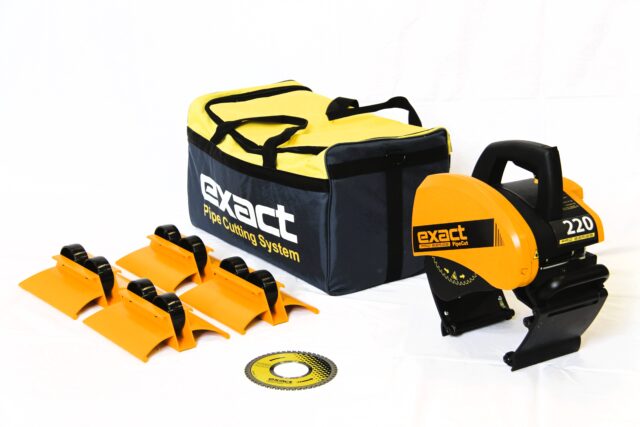

The price includes

  1. PipeCut 220 Pro Series pipe saw
  2. Cermet 165 blade pre-installed
  3. Shoulder bag
  4. Pipe support x 4 pcs
  5. Hex socket key 5 mm and 2 mm fitted to the machine

Technical specification

Pipe OD

20mm – 220mm (0.8" – 8.7")

Max. wall thickness

16 mm (0.6") steel / 230V, 35 mm (1.4”) plastic

Pipe material

Aluminum, Cast iron, Copper, Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel

Laser for cutting point definition

Yes

Traffic lights for overheat control

Yes

Power or Current

1600 W (220-240 V) or 15 A (110-120 V)

Electronical unit

Blade speed preselection, automatic fuse, soft start, torque control

No-Load speed

I (low) = 1900/min, II (high) = 2885 /min

Blade diameter

140 mm (5.6"), 165 mm (6.5"), 180 mm (7.2")

Mounting bore

62mm (2.44”)

Weight

11,5 kg (25 lbs)

Loading capacity of supports

314 kg , 692 lb (4 supports)
