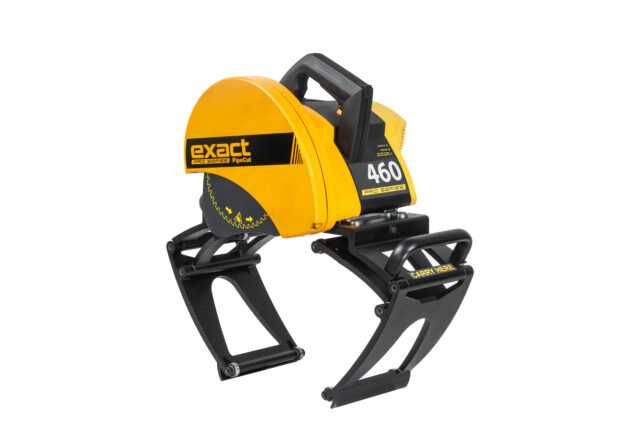

PipeCut 460 Pro Series 2.0

Strong, safe, user-friendly, and precise, equipped with all signature Pro Series features, capable of handling pipes with an outer diameter of up to 460 mm thanks to its large gripper unit.

PipeCut 460 Pro Series 2.0 at a Glance

The largest gripper pipe saw in the Exact Tools Pro Series range.

PipeCut 460 Pro Series 2.0 is a groundbreaking and highly advanced pipe cutting machine in Exact’s Pro Series family. Designed for heavy-duty cutting of large and medium pipes, it delivers straight, precise cuts on all pipe materials. The blade depth adjustment mechanism comes standard for effortless operation.

Like all Exact machines, it is extremely safe and easy to use thanks to its well-designed mechanics. Portable and lightweight, it can be easily carried to the worksite.

It can cut steel pipes with wall thicknesses up to 20 mm (0.8”) and plastics up to 50 mm (2”).

With over 20 years of expertise in developing pipe cutting and finishing tools, Exact has created some of the most advanced pipe cutting systems ever made. Tens of thousands of users worldwide trust our machines, which provide a unique and superior solution for cutting pipes from small to medium-large diameters.

The powerful motor, patented gripping unit, and other advanced features make the machine a true timesaver on the jobsite, boosting productivity and freeing up time for other tasks.

Download product sheet

The Benefits

  • User-friendly, extremely easy, safe, and convenient to use.
  • Efficient, extremely fast cuts.
  • Improved precision with traffic light system.
  • Laser indicator for cutting point accuracy.
  • Blade depth adjustment mechanism.
  • Cuts steel pipes with wall thicknesses up to 20 mm
  • Can be converted into a Cut&Bevel machine with the Cut&Bevel package for Pro Series (sold separately).
  • Designed in Finland, made in the EU

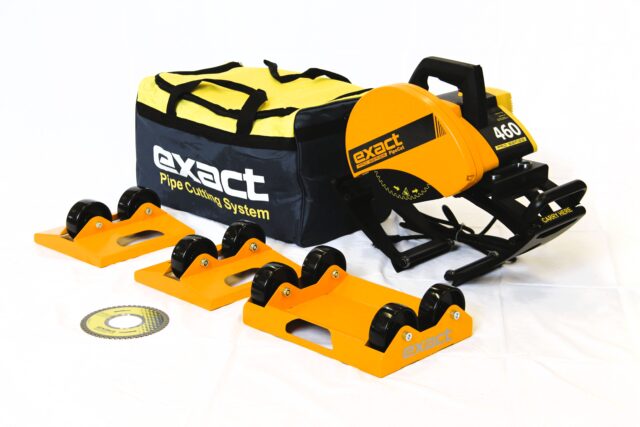

Standard package includes

  1. Shoulder bag
  2. PipeCut 460 Pro Series 2.0 pipe saw
  3. Pipe supporters: 1 × Double and 2 × Single
  4. Operating instructions
  5. Hex socket keys 5 mm and 2 mm (fitted to the machine)
  6. Cermet 165 blade (fitted to the machine)

Technical Specifications

Voltage
Units
  • Product number
    7020460
  • Pipe material
    Steel, Stainless/Inox, Cast iron, Glass fiber, Aluminium, Copper, Plastics.
  • Pipe OD
    100 mm - 460 mm
  • Max. wall thickness
    20 mm (steel), 50 mm (plastics)
  • Power
    2500 W
  • No-load speed
    I (low) = 1900 r/min, II (high) 2900 r/min
  • Blade diameter
    140 mm, 165 mm, 180 mm, 190 mm
  • Mounting bore
    62 mm
  • Weight
    17.7 kg
  • Electronical unit
    Blade speed preselection, overload protection, soft start, torque control
  • Loading capacity of supports
    465 kg

See it in Action

Pro Series Introduction

Downloads

Product card
Manual, spare parts & service drawings
