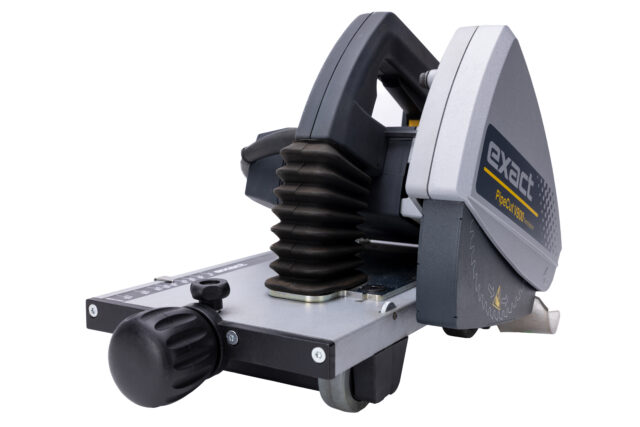

PipeCut V800E at a Glance
Precision-engineered pipe saw for fast, accurate cutting of spiral ducts.
The V800E replaces the previous Exact V1000 model, with the only change being a lower upper limit of 800 mm.
The machine combines ease of use with a wide size range, capable of cutting spiral ducts up to 800 mm (31.5″). The cut ends are straight and ready for connection.
This model features solid rubber tire wheels instead of the Exact gripper unit, preventing marks on the pipe while giving the operator improved control and feel.
This machine can only be used with the Cermet V155 blade due to its unique mounting bore.
As an optional extra, special pipe supports are available to hold spiral ducts ranging from 75 mm to 800 mm. (3″-31.5″)
Download product sheetThe Benefits
- Easy and very safe to operate
- Compact design, yet capable of cutting large ducts
- Precise cut finishes
- Compatible only with the Cermet V155 blade (mounting bore 65 mm / 2.55″)
- Designed in Finland, made in the EU
Standard package includes
- Shoulder bag
- Exact PipeCut V800E pipe saw with Cermet V155 installed
- 5 mm hex socket key, fitted to the machine
- Operating instructions
Technical Specifications
Voltage
Units
-
Product number
7020800
-
Pipe material
Stainless ventilation pipes
-
Pipe OD
75 mm – 800 mm
-
Max. wall thickness
1,5mm, 6 mm seam
-
Power
1200 W
-
No-Load speed
3500 r/min
-
Blade diameter
155mm
-
Mounting bore
65 mm
-
Weight
6,0kg
-

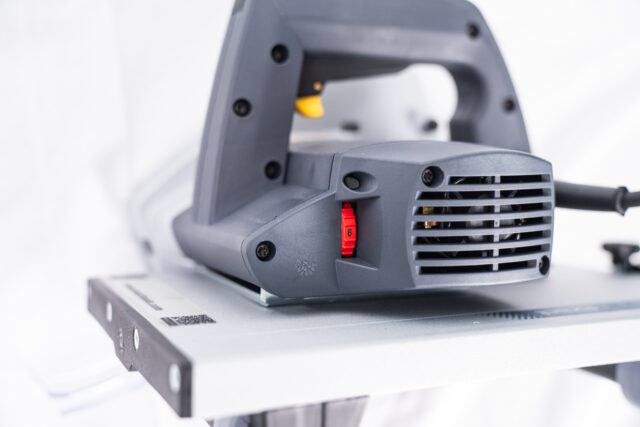

Electronical unit
Blade speed preselection, automatic fuse, soft start, torque control
