Exact PipeCut 220 Pro Series. Cut small and medium pipe sizes in OD, but with large thickness.

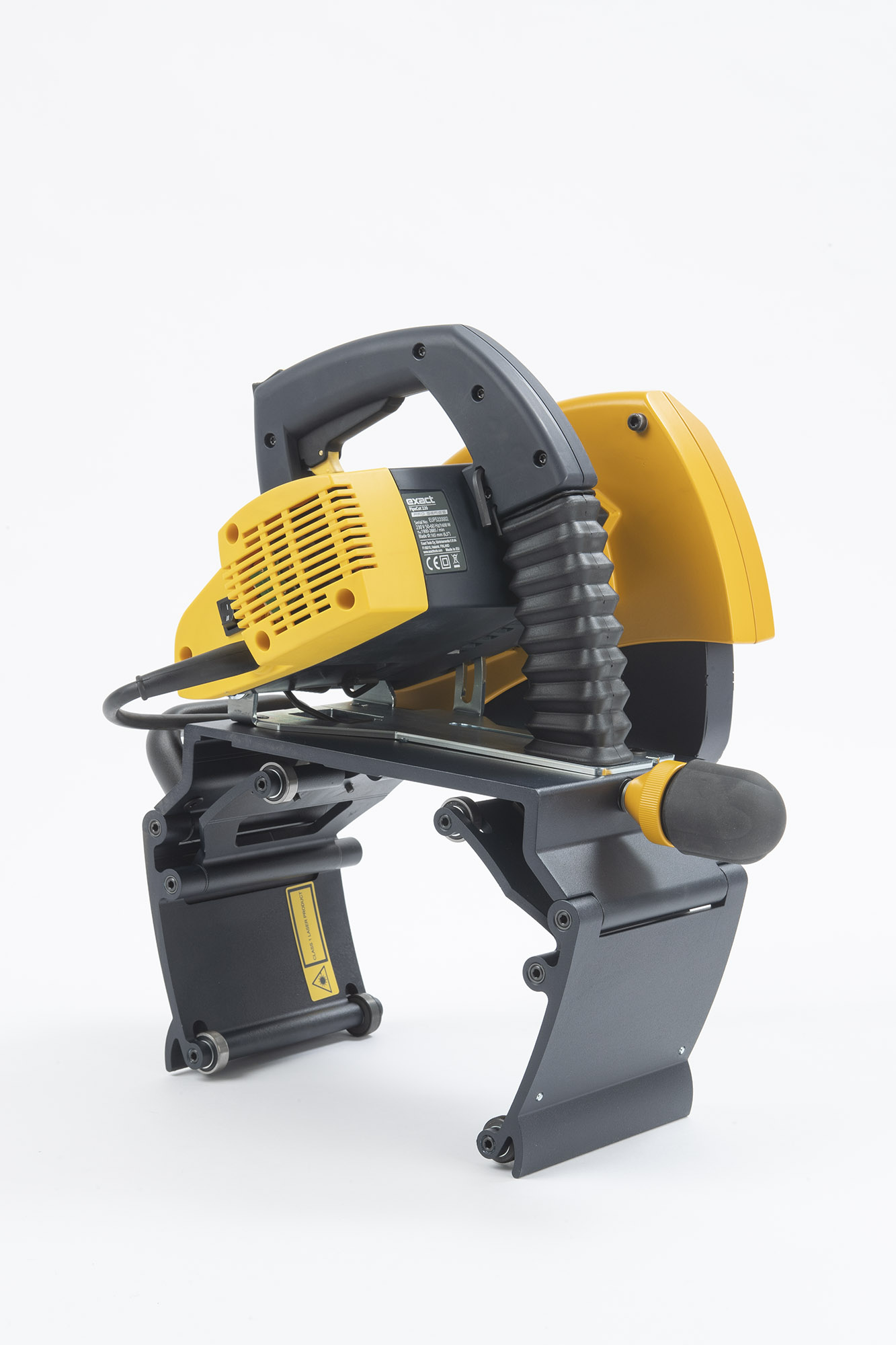

Exact PipeCut 220 Pro Series

Heavy-duty pipe saw for small and medium diameter pipes

This machine is the best choice when you need to cut any small to medium diameter pipes made from the toughest materials.

Wall thickness capacity for steel pipes is 0.5″ and 1.37″ in plastic.

The cutting capacity for pipe outside diameter is 0.8″ – 8.7″.



Equipped with and providing the following benefits for you:

  • User friendliness, extremely easy and convenient to use
  • Efficiency, extremely fast cuts
  • Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds
  • Laser indicator for cutting point precision

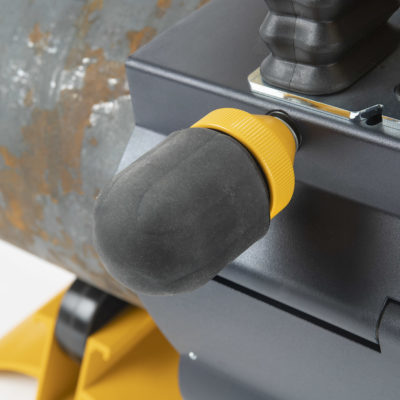

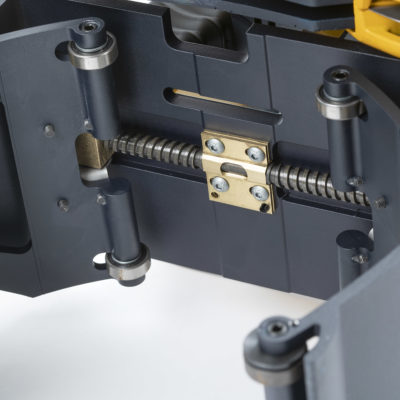

  • Updated adjustment mechanism
  • Easy to carry, easy to move. The machine weighs only 25 lbs

Standard equipment:

  1. PipeCut 220 Pro Series pipe saw
  2. TCT 165 blade pre-installed
  3. Shoulder bag
  4. Pipe support x 4 pcs
  5. Hex socket key 5 mm and 2 mm fitted to the machine
Category:

Technical specification

Pipe cutting capacity (OD)

0.8" to 8.7" (20mm – 220mm)
Max. wall thickness

0.6" (16 mm) Steel / 230V, 1.4” (35 mm) Plastic
Pipe material

Aluminum, Cast iron, Copper, Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Laser for cutting point definition

Yes
Traffic lights for overheat control

Yes
Current

1600 W (220-240 V) or 15 A (110-120 V)
Electronical unit

Blade speed preselection, automatic fuse, soft start, torque control
No-Load speed

I (low) = 1900/min, II (high) = 2885 /min
Blade diameter

140 mm (5.6"), 165 mm (6.5"), 180 mm (7.2")
Mounting bore

2.44” (62mm)
Weight

25 lbs (11.5 kg)
Loading capacity of supports

692 lbs (314 kg) 4 supports
Exact Cermet 140 Saw Blade

Cermet 140

Exact Diamond X140 for cutting cast iron pipes

Diamond X140

Exact TCT 140 saw blade

TCT 140

Exact Alu 140 Saw Blade

Alu 140

Blade Guard Top with Vacuum Port for Pro Series
