Exact PipeCut P1000

Pipe saw for large diameter plastic pipe cutting

A new, unique pipe cutting solution without compare for large diameter plastic pipes.

With this machine you will cut pipe sizes from 2.3″ to 39.4″.

The cutting capacity for max. pipe wall thickness is 2.9”.

Mainly invented and intended for large diameter plastic pipes, but additionally you can also cut smaller pipes.

As the machine is a special pipe saw for plastic pipe cutting, most of the most common plastic pipes can be cut. This includes pipe materials such as PP, PE, PVC, HDPE.

With separately orderable accessories you can also cut e.g. corrugated pipes.

You will make seamless cuts directly on-site (or wherever the pipe is located at). The set-up is easy as is the operating of machine.

The pipe cutting result is accurate and straight. Thanks to the lightweightness, the saw is convenient to move around.

The content includes a safety strap that can be fastened around the pipe, ensuring maximum safety by stabilizing the machine in position. Additionally, we developed completely new saw blades, TCT 250 mm and Cut+Bevel 190 mm, that are separately orderable.

The separately orderable Cut+Bevel 190 saw blade is the way to go when you need to cut and bevel plastic pipe in one process. The specifically designed blade simultaneously cuts the pipe and makes a smooth 15 degrees bevel at the same time.

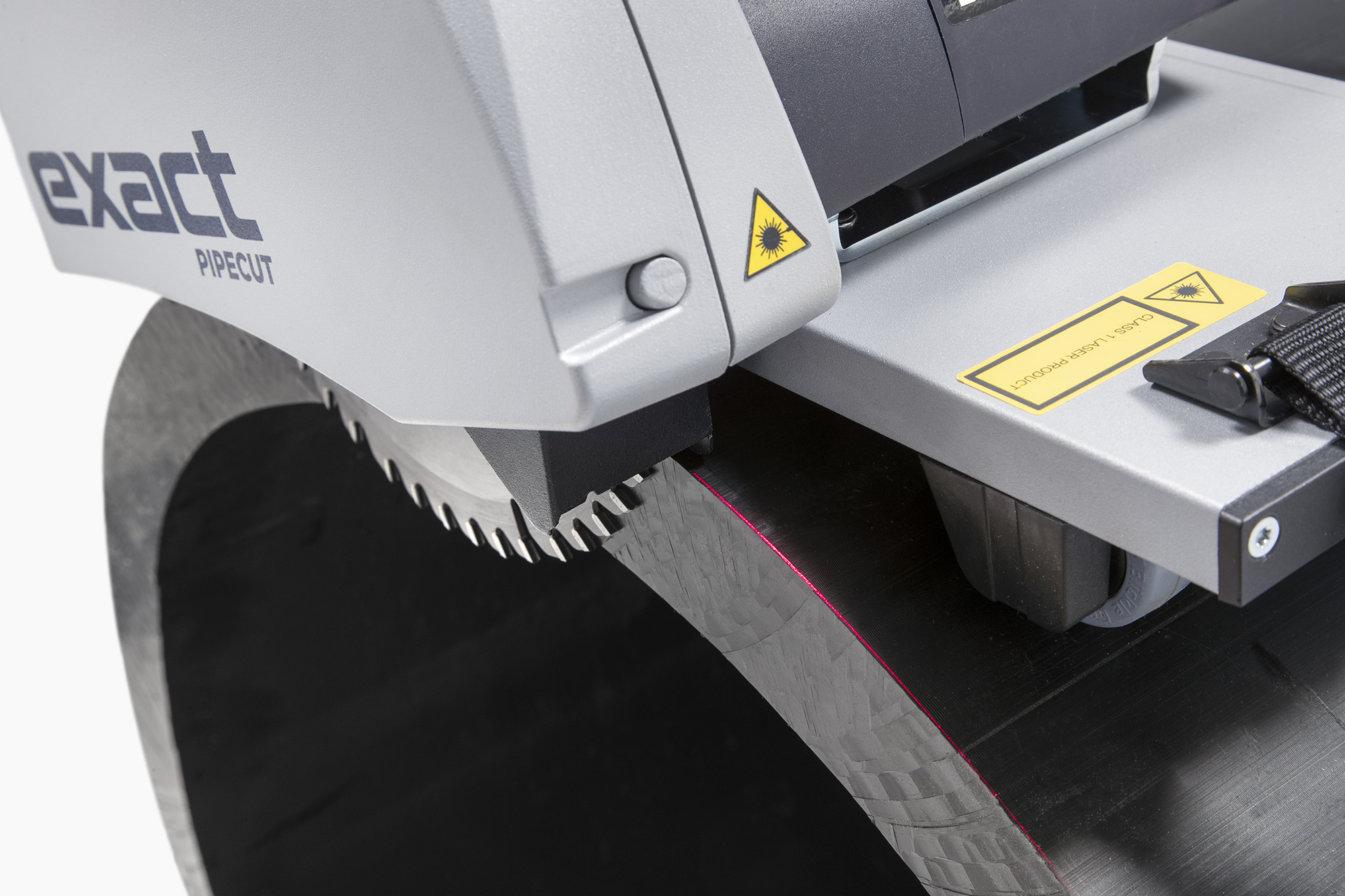

  • Cutting point precision. The machine is equipped with a laser pointer for easy defining of pipe’s cutting point. The laser can be easily switched on or off.
  • Straight and fast cuts. Thanks to the machine’s powerful features, fast and accurate cuts are the key benefits of this pipe cutting machine.
  • Avoid motor overheating. The motor unit has a guiding lights feature that as the name says, guides the user on the motor heating.
  • Forget cleaning. The pipe saw has a vacuum port, which can be attached to industrial vacuum cleaner to drain all the plastic chips.
  • Portable and mobile pipe saw that is also lightweight (11,5 kg/25 lbs.) Easy to move, easy to carry.

Standard equipment:

  1. Exact PipeCut P1000 pipe saw
  2. TCT 190 saw blade pre-installed
  3. Exact bag
  4. Pipe support 1 x big and 2 x small
  5. Operating instructions
  6. Allen keys 5 mm & 2 mm.

Technical specification

Pipe cutting capacity (OD)

2.3" to 40" (60mm – 1000mm)

Max. wall thickness

2.9” (75mm) plastic

Pipe material

Plastic

Current

1600 W (220-240 V) or 15 A (110-120 V)

No-Load speed

I (low) = 1900/min, II (high) = 2885 /min

Blade diameter

165 mm (6.5"), 180 mm (7.2"),190 mm (7.6"), 250 mm (9.8”)

Mounting bore

2.44” (62mm)

Weight

25 lbs (11.5 kg)
