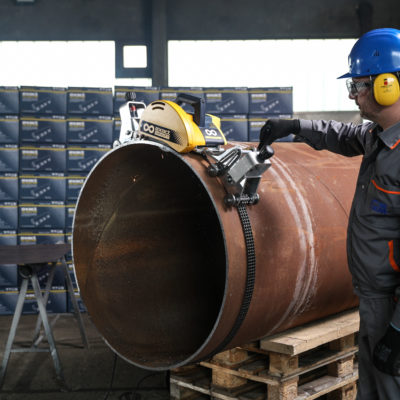

As the name indicates, The Infinity can cut pipe with no limits in regards to outside diameter. You can basically cut all pipe sizes (outside diameter) from 14” and beyond.
Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.
| Infinity Standard | Infinity Plus | Infinity Cut+Bevel | |
| Can cut all pipes from OD 14″ (360 mm) upwards | ✅ | ✅ | ✅ |
| Can cut and bevel cast iron in one process | ❌ | ❌ | ✅ |
| Cutting depth adjustment | ❌ | ✅ | ✅ |
| Constant feed with power drill connection | ❌ | ✅ | ❌ |
Infinity can cut all pipes from OD 14″ / 360 mm upwards: Steel, stainless steel, plastics, cast/ductile iron.
Special blade guard and disc for cutting and bevelling cast iron are standard equipment in Cut+Bevel model. Also the cutting depth adjustment is a standard feature on Cut+Bevel model. This mechanism allows you to cut multi-layer pipes, on any pipe materials as needed.

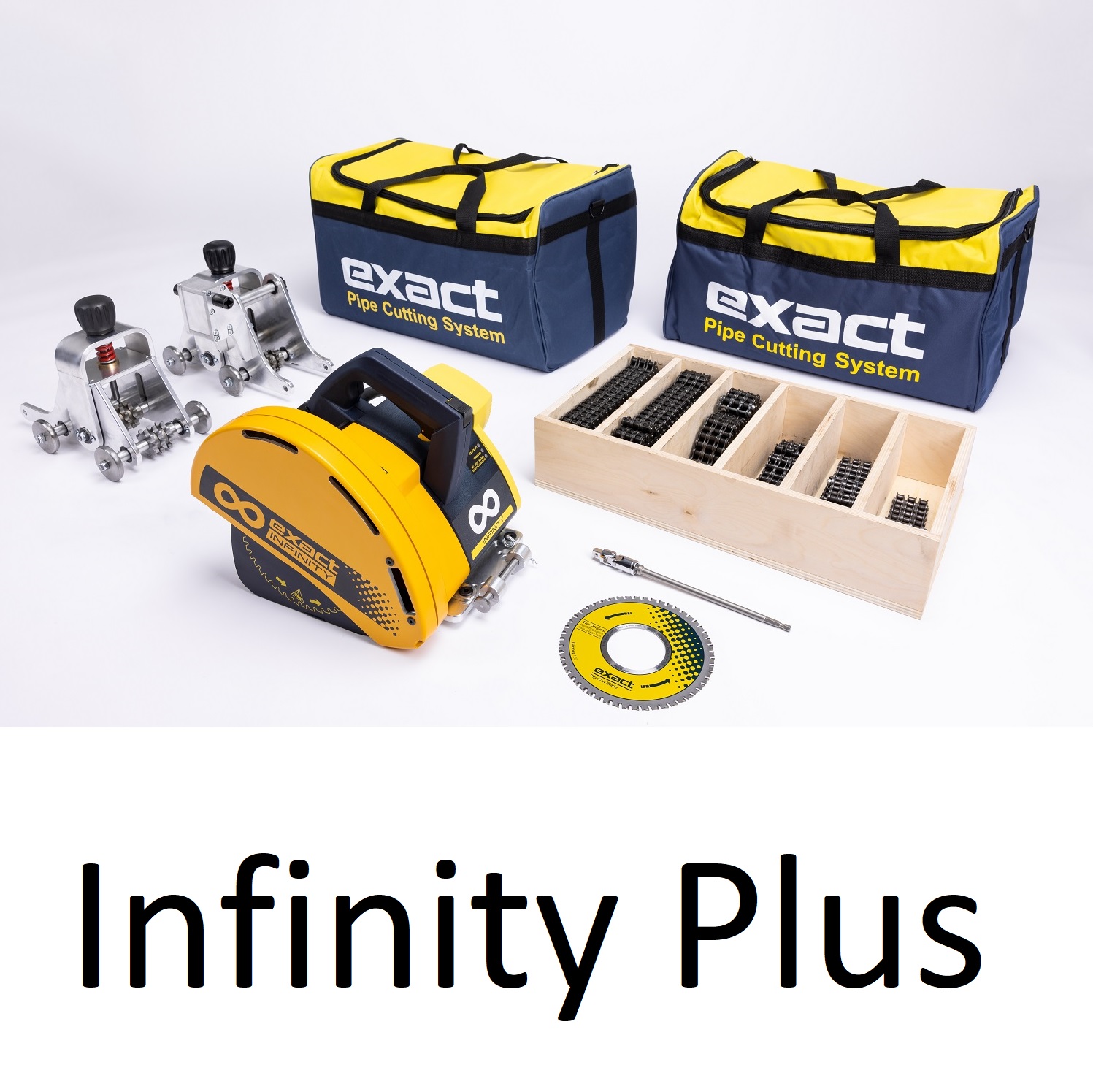

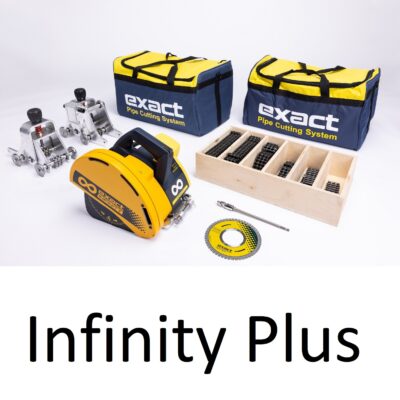

The Infinity Plus model has constant saw feed with power drill connection: the model has a gearbox, that can be connected to a power drill for even easier working. Plus model has also the cutting depth adjustment.
The gearbox and cutting depth adjustment mechanism are also available separately, if needed.
The standard equipment includes chains to cover pipe sizes from 14” to 73″ (outside diameter).
If you need chains to cut pipe over 73” simply order additional chain segments. Additional chain segments are sold in 78” increments.
You can add as many segments as you need to build your gripping unit to grip on pipe sizes to Infinity.
The standard equipment covers the most common pipe sizes. For larger pipe diameters simply add chain segments to be more economical.
In addition to the standard equipment the tensioner device is modified to include gearbox for power drill connection. Also a cutting depth adjustment is included.
In addition to the standard equipment, includes cutting depth adjustment, Cut+Bevel 165 disc, and blade guard for it.
| Max. wall thickness | 0.5” (12 mm) Steel / 120V, 0.8” (20mm) Steel / 230V |
|---|---|
| Pipe material | Aluminum, Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel |
| Mounting bore | 2.44” (62mm) |
| No-Load speed | I (low) = 1900/min, II (high) = 2885 /min |
| Recommended generator capacity | 4,9kVA for 230V, 3kVA for 100 V-120V |
Max. wall thickness:
0.6" (16 mm) Steel / 230V, 1.4” (35 mm) Plastic, 16 mm (0.6") cast iron
Pipe cutting capacity (OD):
0.8" to 8.7" (20mm – 220mm)
Pipe material:
Aluminum, Cast iron, Copper, Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Max. wall thickness:
1.8“ (45mm) Cast iron, 1.8“ (45mm) Plastic
Pipe cutting capacity (OD):
3” to 14” (75mm – 360mm)
Pipe material:
Aluminum, Cast iron, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel
Max. wall thickness:
0.59" (15 mm) Steel / 110V, 0.8” (20mm) Steel / 230V, 2” (50 mm) Plastic
Pipe cutting capacity (OD):
4” to 18” (100mm – 460mm)
Pipe material:
Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
