Your crew can cut pipe up to 360 mm (14.2 in) outer diameter with a gripper-unit machine. Then the job changes. A water main arrives on site at 500 mm. A district heating transmission pipe runs at 630 mm. The gripper cannot open wide enough, and the job stops.
That is the pivot point this article addresses. Below is a direct comparison of the PipeCut Infinity vs Pro Series line, and you can also review our complete pipe saw model comparison so you can match the right machine to your largest pipe diameter before you order.
Two different ways to hold the machine on the pipe
Understanding gripper unit vs chain mechanism is the fastest way to understand why these two product families have different diameter ceilings.

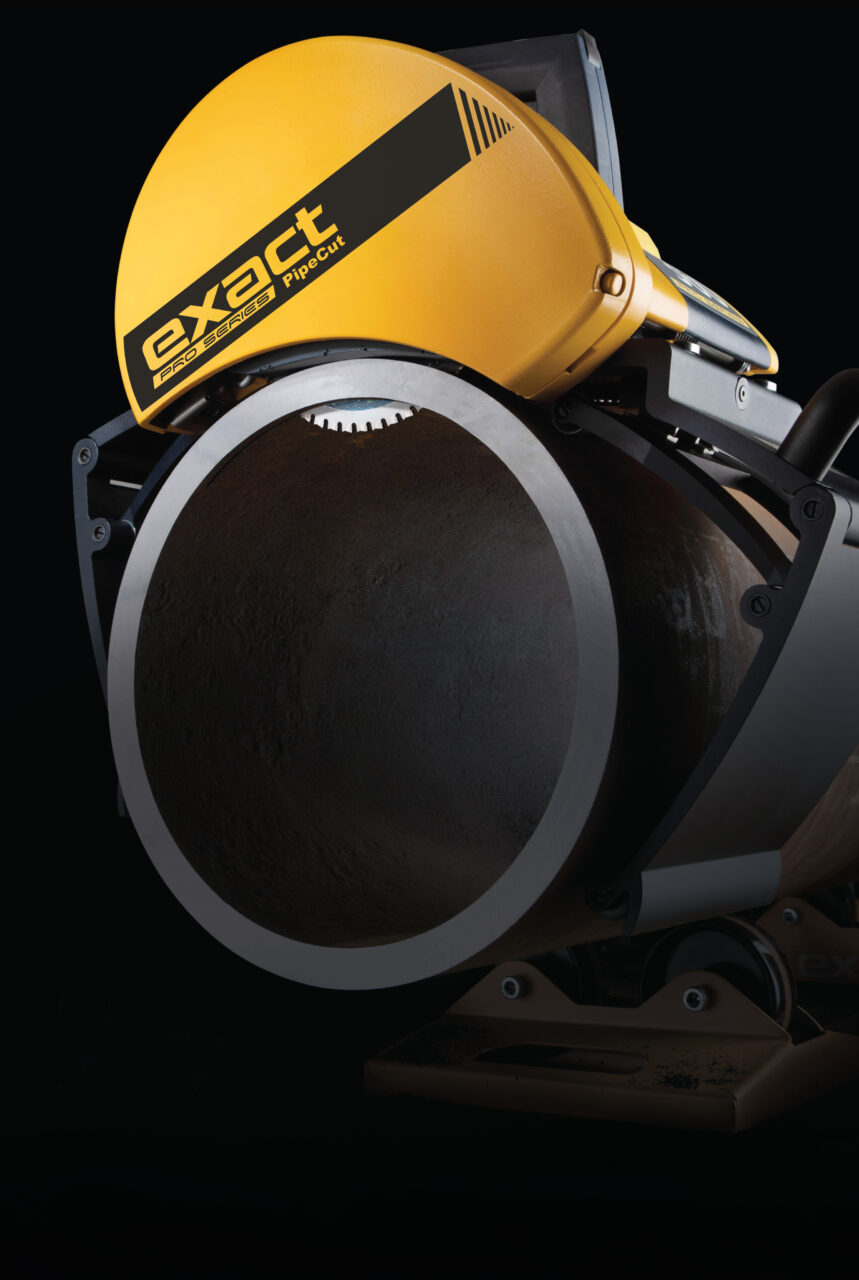

The PipeCut 360 Pro Series 2.0 and the PipeCut 460 Pro Series 2.0 use a rigid gripper unit. The gripper clamps around the pipe and rotates the saw head in a fixed orbital path. Because the gripper is a physical frame with a set geometry, the maximum pipe diameter it can encircle is fixed. Push beyond that diameter and the gripper simply will not close.
The PipeCut Infinity 2.0 uses a continuous chain that wraps around the outside of the pipe. The chain adapts to the pipe circumference rather than being constrained by a rigid frame. There is no upper diameter limit because the chain length, not a fixed frame, determines what the machine can grip. The lower threshold for the Infinity is 360 mm (14.2 in) OD, which is where the Pro Series reaches its ceiling.
Capacity comparison: diameter, material, and wall thickness
The table below draws only from published product page specifications. Voltage-dependent figures are labelled. Cells are left blank where a specification is not published on the respective product page. For a detailed breakdown of the 360 and 460 capacity line, see the dedicated comparison.
- Pipe OD range, PipeCut 360 Pro Series 2.0: up to 360 mm (14.2 in)
- Pipe OD range, PipeCut 460 Pro Series 2.0: up to 460 mm (18.1 in)
- Pipe OD range, PipeCut Infinity 2.0: 360 mm (14.2 in) and above, no upper limit
- Max steel wall, PipeCut 360 Pro Series 2.0: 16 mm (0.63 in) at 110 V / 20 mm (0.79 in) at 220 V
- Max steel wall, PipeCut 460 Pro Series 2.0: 20 mm (0.79 in)
- Holding mechanism, Pro Series: rigid gripper unit, fixed orbital path
- Holding mechanism, PipeCut Infinity 2.0: continuous chain, adapts to pipe circumference
- Cut and Bevel conversion: available on 360 Pro Series 2.0, 460 Pro Series 2.0, and Infinity 2.0
Both families cut steel, stainless steel, plastic, copper, aluminium, and multi-layer pipe. Neither machine is suitable for cast iron or ductile iron when used with the Cut and Bevel package (see the accessories section below).
Setup time and operator workload in practice
The gripper-unit machines are faster to set up on smaller-diameter pipe. You place the gripper, close it, and the machine is ready to run. The orbital path is predetermined by the frame, so there is no chain alignment step.
The Infinity chain takes slightly longer to position on the first use because the operator wraps the chain around the pipe and connects it. Once the technique is learned, the process is repeatable and consistent. On very large-diameter pipe, the chain approach is actually simpler than any alternative, because there is no alternative fixed-frame machine that can reach those diameters.
Both machines are portable and designed for on-site operation without a fixed support structure. The cold-cutting process produces no sparks and no open flame, which removes hot-work permit requirements in many facilities.
Cut quality and repeatability at large diameters
Both product families produce straight, square cuts that are ready for joining without secondary dressing. This is a direct outcome of the guided orbital cutting path: the blade travels around the pipe at a fixed angle rather than being steered freehand.
At large diameters, maintaining squareness becomes more critical because any angular error translates into a larger gap at the joint face. The chain mechanism on the Infinity maintains the same guided cutting geometry regardless of diameter, so cut quality does not degrade as pipe size increases. This is the key advantage of a chain pipe saw over freehand methods such as angle grinding or flame cutting on large-diameter work.
Applications where Infinity is the only realistic choice
- Large-diameter water mains. Municipal water infrastructure frequently uses pipe above 460 mm OD. A fixed-capacity gripper machine cannot open to that diameter, so the Infinity chain mechanism is the only powered orbital cutter that can address the job.
- District heating transmission pipe. Pre-insulated district heating pipe often runs at 500 mm to 800 mm OD or larger. Cutting pipe over 360 mm with a gripper unit is not possible, and freehand methods risk angular error at the weld preparation face. Teams planning a large diameter cut end to end will find the full Infinity setup process covered in detail.
- Process and refinery pipework above 460 mm. High-pressure process lines in refineries and chemical plants require square, burr-free cuts for reliable flange and weld joints. No gripper-unit machine in the Pro Series range reaches these diameters.
- Penstock and hydro pipework. Penstocks in hydroelectric installations are large-diameter steel pipes where dimensional accuracy at cut faces directly affects installation fit. The chain mechanism scales to these diameters without changing the cutting geometry.
- Decommissioning and demolition of large steel pipe. Removing large-diameter pipework in industrial decommissioning requires repeated, controlled cuts. A fixed-capacity machine cannot be used, and freehand cutting introduces safety risks and dimensional inconsistency that the Infinity eliminates.
Applications where Pro Series is the better purchase
If your work stays within the 360 mm OD ceiling, the PipeCut 360 Pro Series 2.0 is faster to deploy and lighter to carry. It is the right choice for plumbing, HVAC, and general mechanical contracting where pipe diameters are predictable and within that range.
The PipeCut 460 Pro Series 2.0 extends the gripper range to 460 mm OD and suits industrial maintenance teams and contractors who regularly work with larger schedule pipe but do not encounter pipe above that threshold.
- Plumbing and HVAC contractors cutting copper, plastic, and steel up to 360 mm OD
- Industrial maintenance teams on process lines where pipe OD stays below 460 mm
- Shipyard pipefitters working with standard schedule pipe in confined spaces
- Contractors who need the lightest possible machine for overhead or elevated work
Accessories that change the calculation
The Cut and Bevel package for Pro Series and Infinity converts any of these machines from a straight-cut tool into a combined cut-and-bevel tool in a single pass. This eliminates the separate bevelling step before welding and reduces total cycle time on weld-prep work. The package is compatible with the 360 Pro Series 2.0, the 460 Pro Series 2.0, and the Infinity 2.0.
Important restriction: the Cut and Bevel package is not suitable for cast iron or ductile iron pipe. On those materials, use the machine in straight-cut mode only.
The Infinity blade guard with vacuum port connects to a dust extractor and captures cutting debris at source. On large-diameter pipe in enclosed spaces or occupied facilities, this accessory significantly reduces airborne particulate and keeps the work area clean.
For applications where electrical power is unavailable or restricted, the hydraulic HYDRA Infinity provides the same unlimited-diameter chain cutting capability driven by a hydraulic power unit. You can also review the hydraulic versions of both families to understand how they compare with their electric equivalents in wet and submerged conditions. This is relevant for subsea, offshore, and hazardous-area applications where electric tools are not permitted.
The Cermet 180 blade is an option for specific material combinations. Consult the blade selection guide on the product page to confirm compatibility with your pipe material and wall thickness.
Contact Exact Tools and tell us your largest pipe diameter
The right machine depends on one number above all others: the outer diameter of the largest pipe on your job list. If that number is at or above 360 mm, the Infinity range is the only orbital pipe saw family that can handle it. If it stays below that threshold, the Pro Series gives you a lighter, faster-deploying machine sized for the work.
We are here to help you specify correctly the first time. Reach out through our contact page and tell us your largest pipe diameter, your pipe material, and your wall thickness. We will confirm the right machine, the right blade, and any accessories that apply to your application.
