PipeCut 170E vs PipeCut 220E: which Classics saw fits your pipe sizes

You have two pipe sizes on the job list. One sits within 170 mm outside diameter, the other pushes closer to 220 mm. The PipeCut 170E and PipeCut 220E are close to a small and a large version of the same saw. Both belong to the Classics line, both use the same motor, speed range, 140 mm blades and wall capacity, and both cut the same materials. The decision comes down to the largest pipe you cut. For the full range, see our complete pipe saw model comparison.

PipeCut 220E pipe saw

Quick Answer: Which One Is Right for You?

Choose the PipeCut 170E if your pipes stay within 170 mm OD. Choose the PipeCut 220E if you regularly cut pipe between 170 and 220 mm OD. Wall capacity, power, speed settings, blades and materials are the same on both machines.

PipeCut 170E vs 220E: Specifications Side by Side

Specification PipeCut 170E PipeCut 220E
Pipe OD 15 to 170 mm (0.6 to 6.7 in) 15 to 220 mm (0.6 to 8.6 in)
Max wall, steel 8 mm 8 mm
Max wall, plastic 14 mm 14 mm
Power 1100 W / 9.2 A (110 V), 1200 W / 5.6 A (220 V) 1100 W / 9.2 A (110 V), 1200 W / 5.6 A (220 V)
No-load speed 1600 to 3500 rpm 1600 to 3500 rpm
Speed presets 4 stainless and acid-resistant, 5 steel, 6 other materials 4 stainless and acid-resistant, 5 steel, 6 other materials
Blade 140 mm, 62 mm bore, TCT 140 fitted 140 mm, 62 mm bore, TCT 140 fitted
Weight 5.7 kg (110 V), 6.0 kg (220 V) 6.0 kg
Supports included 4 × Pipe Support 170 4 × Pipe Support 280
Support load capacity 314 kg with 4 supports 314 kg with 4 supports
Materials Steel, stainless/inox, cast iron, glass fibre, aluminium, copper, plastics
Electronics Blade speed preselection, soft start, torque control, automatic fuse

The One Real Difference: OD Range

The 220E reaches 50 mm further in outside diameter. Every pipe below 170 mm can be cut with either machine, using the same wall capacity, blade and speed setting. If even one regular pipe size on your schedule sits between 170 and 220 mm, the 220E covers it and the 170E does not.

What the Two Machines Share

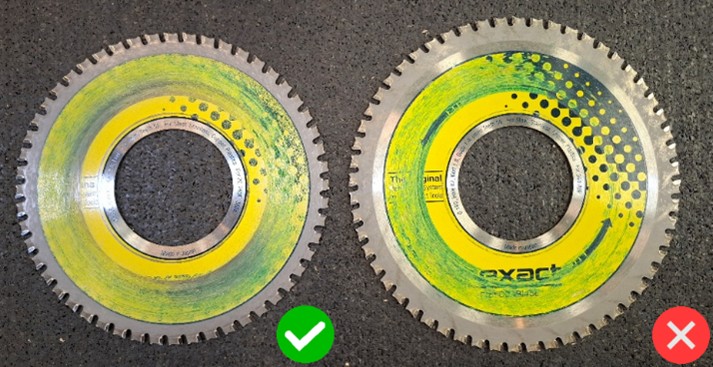

Both saws take 140 mm blades with a 62 mm bore. The 170E product page lists TCT 140, TCT Z140, Cermet 140, Cermet 140 THIN, INOX 140, INOX 140 Thin, ALU 140 and Diamond X140 as compatible, so one blade stock can serve both machines. Both use the same presets: 4 for stainless and acid-resistant steel, 5 for steel and 6 for all other materials. Our blade selection guide matches blades to materials, and our guide to getting more cuts from every pipe saw blade covers speed, feed and wear.

Supports and Handling

Each saw comes with four supports: Pipe Support 170 for the 170E and Pipe Support 280 for the 220E, both rated at 314 kg with four supports. On a 220 V supply both machines weigh 6.0 kg, so carrying weight is not a deciding factor. For the full setup sequence, see our step-by-step guide to cutting steel pipe square.

When a Different Saw Fits Better

Three Decision Scenarios

Plumbing and building services up to 170 mm

Your pipes stay under 170 mm OD. The 170E covers every size you cut, with the same capacity and blades as the 220E.

Mixed maintenance work up to 220 mm

Some pipes on your schedule sit between 170 and 220 mm. The 220E covers the full range with one machine.

A second saw alongside a Pro Series machine

Your Pro Series saw handles thick walls and larger diameters. A Classics saw adds a lighter machine for smaller pipe. Choose the 170E or 220E by the largest small-bore size you expect to cut.

Frequently Asked Questions

Do the 170E and 220E use the same blades?

Yes. Both take 140 mm blades with a 62 mm bore and ship with a TCT 140 fitted, so the same blade stock serves both machines.

Can the 220E cut thicker steel than the 170E?

No. Both are rated for an 8 mm steel wall and a 14 mm plastic wall. For walls up to 16 mm, look at the 220 Pro Series.

Do both machines cut stainless steel?

Yes. Both list stainless and inox among their materials and have preset 4 for stainless and acid-resistant steel.

Is there a cordless version?

Yes. The PipeCut 170 Battery covers 15 to 170 mm with a 5 mm steel wall limit and comes with two 18 V 5.0 Ah batteries and a charger.

Choose Your Classics Saw With Exact Tools

Pick the machine by the largest pipe you cut: the PipeCut 170E for pipe up to 170 mm and the PipeCut 220E for pipe up to 220 mm. If your schedule sits on the boundary, send us your pipe sizes, wall thicknesses and materials through our contact page, or find your nearest distributor.
